10x16 Gable Shed Plan

Two options available included in your download:

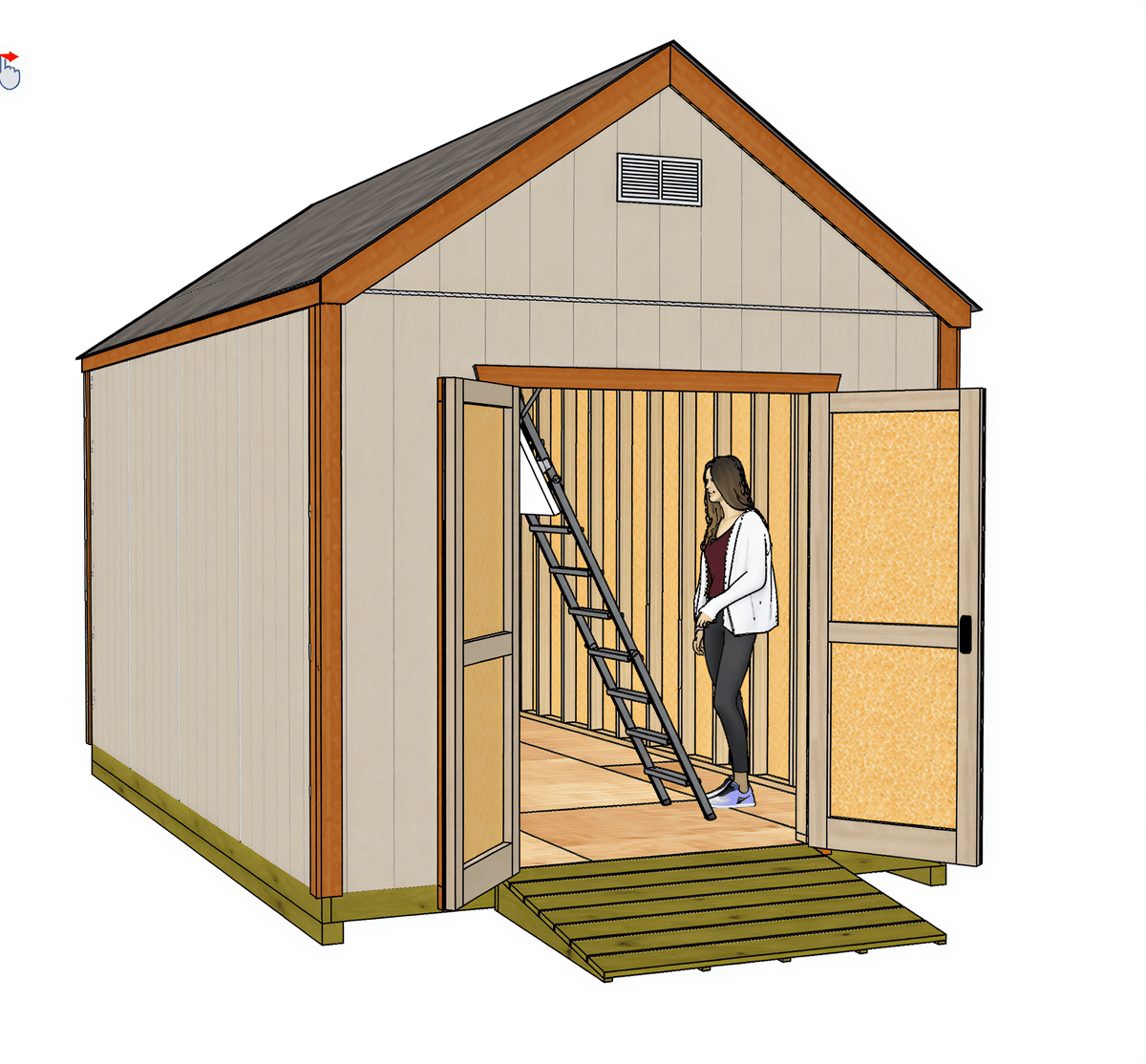

Option 1:  doors on the short end wall

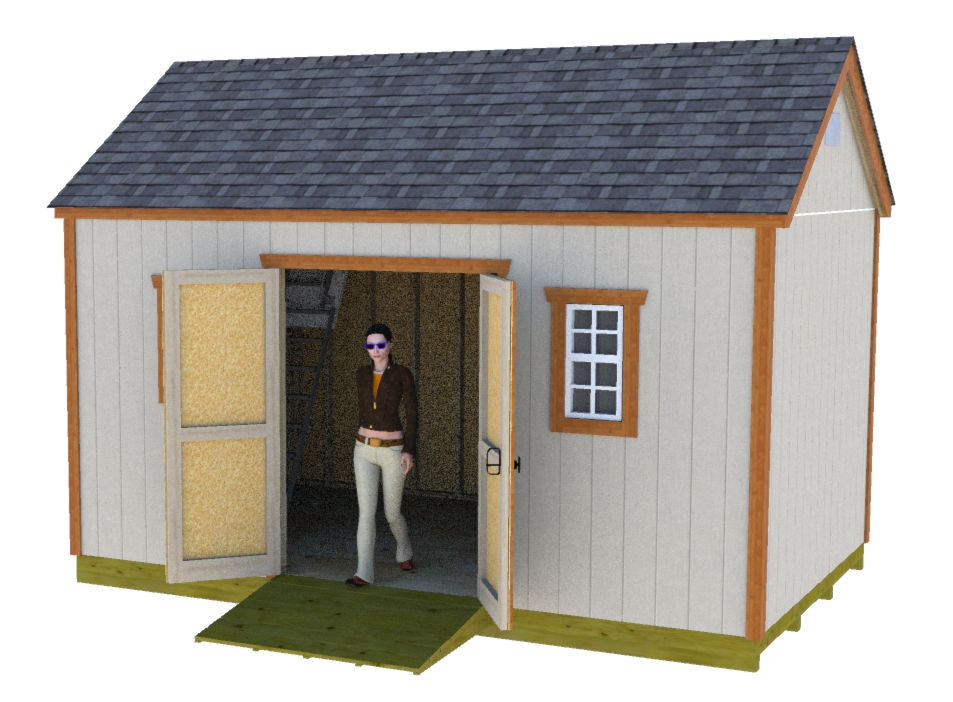

Option 2:  doors on the long wall

What you'll receive with your instant download:

• Adobe pdf file with 33 pages of shed plans.
• 61 page Gable shed building construction guide. (download it now)
• 2 Materials list divided into shed building phases for ease of understanding.  One list is for the doors on the short end wall, and one material list is for placing the doors and 2 windows on the long wall. (door on end wall material list) (door on long wall materials list).
• Email support from the developer of these shed plans for any questions you may have.

10x16 Gable Shed Details:

When you build using these 10x16 gable shed  plans you will have a neat storage shed with the following:

• Gable style shed roof with a 6/12 roof pitch.

• 10' wide, 16' long, and 12' 3.75" tall (ground to roof peak).
• 5' wide by 6'8" tall double shed doors on either wall.
• Long wall with doors also has 2 window that are 18"x27".

• 7'10.5"  interior wall height.
• 11' 5" exterior height from bottom of floor framing to roof peak.

• Option to frame loft any way you want.
• 2.5' loft height off loft floor to inside roof peak.

• Wooden floor framing with 2x6 treated floor joists 16" on center.
• 2x4 wall framing 16" on center.
• 2x4 truss construction spaced 24" on cente.r
• Plans show LP 1/2" Smartside siding panels however you may use siding of your choice.  If you prefer to go with lap siding you will have to sheet the walls first with 1/2" osb.

• optional 5' wide shed ramp.
• Use cedar trim, pvc trim, or trim of your choice.  Plans show cedar trim on roof, doors, and corners.

Also included with your download is a free shed cupola plan!
